Spacers For Double bus-bar Conductor

Protective fittings
Spacers For Double bus-bar Conductor reference image
CCK Power Fittings

Spacers For Double bus-bar Conductor for maintaining spacing between the associated conductors.

Product details

Product
Spacers For Double bus-bar Conductor
Category
Protective fittings
Model references
MRJ-600K/120 / LGKK-600 / MRJ-600K/200 / MRJ-600K/400 / MRJ-600K/450 / MRJ-900K/120 / LGKK-900 / MRJ-900K/200 / MRJ-900K/400 / MRJ-900K/450 / MRJ-1400K/400 / LGKK-1400 / MRJ-1400/120 / LGJQT-1400 / MRJ-1400/200 / MRJ-1400/400 / MRJ-1400/450 / MRJ-1440N/200 / NAHLGJQ-1400 / MRJ-1440N/400
Materials
Aluminium alloy / Hot-dip galvanized steel / Aluminium
Standards
To be agreed in the project specification

Specifications and drawings

Check the model, units and dimension symbols against the drawing. Breaking loads and working loads are different values and must not be used interchangeably.

Specification table 1
ModelSuitable Conductor Dia.(mm)Main Dimensions（mm)Weight (kg)
ABLR
MRJ-600K/120LGKK-6005068120260.7
MRJ-600K/200LGKK-6006070200262.2
MRJ-600K/400LGKK-6006070400262.5
MRJ-600K/450LGKK-6006070450263.3
MRJ-900K/120LGKK-9005065120260.7
MRJ-900K/200LGKK-9005068200262.2
MRJ-900K/400LGKK-9005068400262.5
MRJ-900K/450LGKK-9005068450263.3
MRJ-1400K/400LGKK-14007083400293.5
MRJ-1400/120LGJQT-14005068120260.7
MRJ-1400/200LGJQT-14005068200262.2
MRJ-1400/400LGJQT-14006070400262.5
MRJ-1400/450LGJQT-14006070450263.3
MRJ-1440N/200NAHLGJQ-14006070200262.2
MRJ-1440N/400NAHLGJQ-14006070400262.5

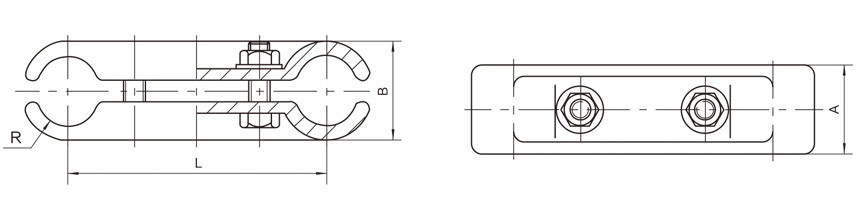

Spacers For Double bus-bar Conductor — dimension drawing 1
CCK Power Fittings

Information for quotation

protection purpose, conductor parameters, line arrangement, mounting location, environment and design requirements
