QH Ball eyes. A ball-ended link for connecting an insulator to matching hardware.
Product details
- Product
- QH Ball eyes
- Category
- Link fittings
- Model references
- QH-7 / QH-10 / QH-12 / QH-16 / QH-21 / QH-30 / QH-07100
- Materials
- Hot-dip galvanized steel
- Standards
- To be agreed in the project specification

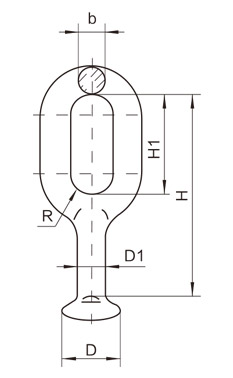

Specifications and drawings
Check the model, units and dimension symbols against the drawing. Breaking loads and working loads are different values and must not be used interchangeably.
| Stable design Catalog No. | Model | Main Dimensions(mm) | Designat ed size of coupling | Specified Failure Load (kN) | Weight (kg) | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| R | b | H | H1 | D | D1 | |||||
| QH-7 | 12 | 16 | 100 | 57 | 33.3 | 17 | 16 | 70 | 0.6 | |
| QH-10 | 12 | 16 | 110 | 60 | 33.3 | 17 | 16 | 100 | 1.1 | |
| QH-12 | 11 | 19 | 90 | 45 | 33.3 | 17 | 16 | 120 | 1.1 | |
| QH-16 | 13 | 18 | 127 | 80 | 41.0 | 21 | 20 | 160 | 1.3 | |
| QH-21 | 16 | 20 | 150 | 80 | 41.0 | 21 | 20 | 210 | 1.3 | |
| QH-30 | 17 | 22 | 150 | 98 | 49.0 | 25 | 24 | 300 | 1.7 | |
| QH-07100 | 12 | 16 | 100 | 57 | 33.3 | 17 | 16 | 70 | 0.6 | |
