CCK / Protective fittings
避雷针用金具
CCK Power Fittings
避雷针安装配套金具。订货时需与安装图纸核对连接形式、尺寸和固定位置。
产品资料
- 产品名称
- 避雷针用金具
- 类别
- 防护金具
- 型号
- 请提供所需规格或图纸
- 材料
- 铜 / 铝
- 标准
- 按项目技术要求确认
规格与图纸
核对型号、单位及图纸上的尺寸符号。表列破坏载荷与工作载荷不同，不应直接替用。

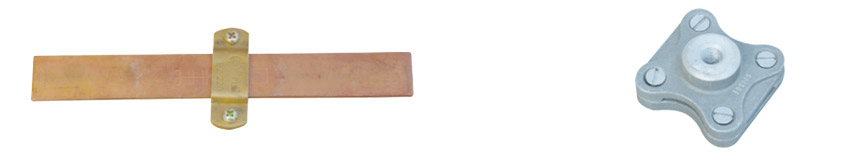

| For use with Bare Copper | ||
|---|---|---|
| Conductor Size mm | 重量（kg） | cat.no. |
| 20 x 3 | 0.06 | YG203 |
| 25 x 3 | 0.07 | YG253 |
| 25 x 4 | 0.07 | YG254 |
| 25 x 6 | 0.08 | YG256 |
| 31 x 3 | 0.09 | YG313 |
| 31 x 6 | 0.10 | YG316 |
| 38 x 3 | 0.12 | YG383 |
| 38 x 5 | 0.12 | YG385 |
| 38 x 6 | 0.14 | YG386 |
| 50 x 3 | 0.15 | YG503 |
| 50 x 4 | 0.15 | YG504 |
| 50 x 6 | 0.16 | YG506 |
| 用于裸铝带 | ||
| 20 x 3 | 0.02 | YG203 |
| 25 x 3 | 0.03 | YG253 |
| 25 x 6 | 0.04 | YG256 |
| 50 x 6 | 0.05 | YG506 |
| Conductor Size mm | 重量（kg） | cat.no. |
| 20 x 3 | 0.02 | TCC203 |
| 25 x 3 | 0.02 | TCC253 |
| For use with Bare Aluminium | ||
| 铝 | 0.01 | TCA203 |
| 20 x 3 | 0.05 | TCA253 |
| Conductor Size mm | 导线材料 | 重量（kg） | cat.no. |
|---|---|---|---|
| 25 x 3 | Copper | 0.23 | CSC253 |
| 25 x 6 | Copper | 0.42 | CSC256 |
| 50 x 6 | Copper | 0.98 | CSC506 |
| 25 x 3 | Aluminium | 0.07 | ASC253 |

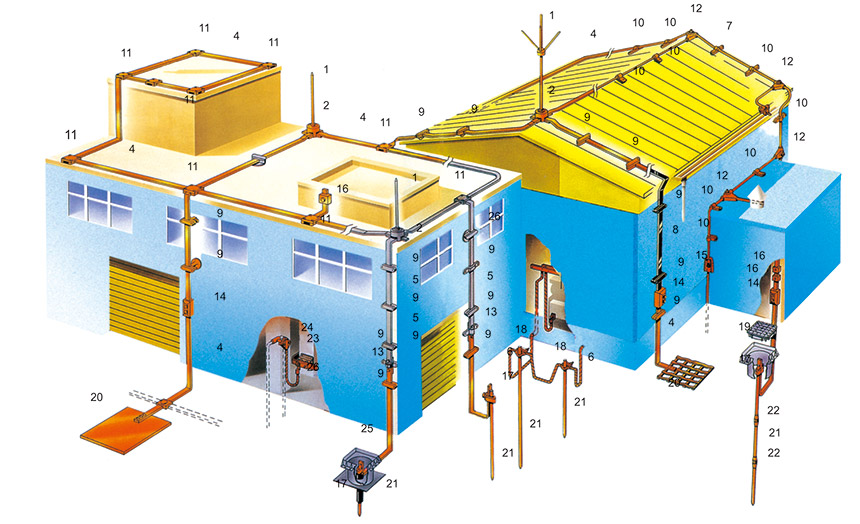

| No.Description | 13 | Bimetallic Connectors | |
|---|---|---|---|
| 1 | Air Terminals | 14 | Test Clamps for Tape |
| 2 | Air Terminal Fixing for Tape | 15 | Test Clamps for Solid Circular |
| 3 | Holdfast | 16 | Bonds |
| 4 | Copper Tape | 17 | Tape-Earth Rod Clamps |
| 5 | Aluminium Tape | 18 | Cable-Earth Rod Clamps |
| 6 | Copper Strand | 19 | Inspection Pits |
| 7 | Copper Solid Circular Conductor | 20 | Earth Plates&Mats |
| 8 | P.V.C.Covered Tape | 21 | Earth Rods |
| 9 | Tape Fixings | 22 | Earth Rods Couplings |
| 10 | Solid Circular Fixings | 23 | Earthing Points |
| 11 | Junction Clamps for Tape | 24 | Earth Rod Seal |
| 12 | Junction Clamps for Solid Circular | 26 | Adhesive D.C.Clip Flexible Braiding Bonds |
CCK Power Fittings
CCK Power Fittings
CCK Power Fittings
询价时需要提供
防护用途、导线参数、线路布置、安装位置、环境与设计要求
联系 CCK ↗同类产品
