CCK / Preformed helical fittings

预绞式护线条

预绞式金具
预绞式护线条产品参考图
CCK Power Fittings

预绞式护线条。预绞式条形护线件，用于导线支撑处的保护。

产品资料

产品名称
预绞式护线条
类别
预绞式金具
型号
FYH-35/6 / LGJ-35/6 / FYH-50/8 / LGJ-50/8 / FYH-50/30 / LGJ-50/30 / FYH-70/10 / LGJ-70/10 / FYH-95/15 / LGJ-95/15 / FYH-95/20 / LGJ-95/20 / FYH-95/55 / LGJ-95/55 / FYH-120/7 / LGJ-120 / FYH-120/20 / LGJ-120/20 / FYH-120/25 / LGJ-120/25 / FYH-120/70 / LGJ-120/70 / FYH-150/8 / LGJ-150/8 / FYH-150/20 / LGJ-150/20 / FYH-150/25 / LGJ-150/25 / FYH-150/35 / LGJ-150/35 / FYH-185/10 / LGJ-185/10 / FYH-185/25 / LGJ-185/25 / FYH-185/30 / LGJ-185/30 / FYH-185/45 / LGJ-185/45 / FYH-210/10 / LGJ-210/10 / FYH-210/25 / LGJ-210/25 / FYH-210/35 / LGJ-210/35 / FYH-210/50 / LGJ-210/50 / FYH-240/30 / LGJ-240/30 / FYH-240/40 / LGJ-240/40 / FYH-240/55 / LGJ-240/55 / FYH-300/15 / LGJ-300/15 / FYH-300/20 / LGJ-300/20 / FYH-300/25 / LGJ-300/25 / FYH-300/40 / LGJ-300/40 / FYH-300/50 / LGJ-300/50 / FYH-300/70 / LGJ-300/70 / FYH-400/20 / LGJ-400/20 / FYH-400/25 / LGJ-400/25 / FYH-400/35 / LGJ-400/35 / FYH-400/50 / LGJ-400/50 / FYH-400/65 / LGJ-400/65 / FYH-400/95 / LGJ-400/95 / FYH-500/35 / LGJ-500/35 / FYH-500/45 / LGJ-500/45 / FYH-500/65 / LGJ-500/65 / FYH-630/45 / LGJ-630/45 / FYH-630/55 / LGJ-630/55 / FYH-630/80 / LGJ-630/80 / FYH-720/50 / ACSR-720/50 / FYH-800/55 / LGJ-800/55 / FYH-800/70 / LGJ-800/70 / FYH-800/100 / LGJ-800/100
材料
以具体型号与确认图纸为准
标准
按项目技术要求确认

规格与图纸

核对型号、单位及图纸上的尺寸符号。表列破坏载荷与工作载荷不同，不应直接替用。

规格表 1
型号Suitable Conductor (mm2)Main Dimensions(mm)No of a group重量（kg）
DdL
FYH-35/6LGJ-35/67.13.6100090.20
FYH-50/8LGJ-50/88.03.6110090.25
FYH-50/30LGJ-50/309.83.61300110.30
FYH-70/10LGJ-70/109.73.61300110.33
FYH-95/15LGJ-95/1511.43.61400130.53
FYH-95/20LGJ-95/2011.43.61400130.54
FYH-95/55LGJ-95/5513.33.61500160.62
FYH-120/7LGJ-120"12.03.61400140.55
FYH-120/20LGJ-120/2012.53.61400140.57
FYH-120/25LGJ-120/2513.03.61400140.58
FYH-120/70LGJ-120/7014.94.61800140.75
FYH-150/8LGJ-150/813.33.61500160.62
FYH-150/20LGJ-150/2014.73.61500160.65
FYH-150/25LGJ-150/2514.23.61500160.64
FYH-150/35LGJ-150/3514.53.61500160.66
FYH-185/10LGJ-185/1014.94.61800141.24
FYH-185/25LGJ-185/2515.74.61800141.25
FYH-185/30LGJ-185/3015.74.61800141.26
FYH-185/45LGJ-185/4516.34.61800141.26
FYH-210/10LGJ-210/1015.94.61800141.27
FYH-210/25LGJ-210/2516.64.61800141.28
FYH-210/35LGJ-210/3516.94.61800141.28
FYH-210/50LGJ-210/5017.34.61800141.30
FYH-240/30LGJ-240/3017.94.61900161.44
FYH-240/40LGJ-240/4017.94.61900161.44
FYH-240/55LGJ-240/5518.64.61900131.50
FYH-300/15LGJ-300/1519.16.32000132.30
FYH-300/20LGJ-300/2019.46.32000132.30
FYH-300/25LGJ-300/2519.76.32000132.33
FYH-300/40LGJ-300/4019.96.32000132.34
FYH-300/50LGJ-300/5020.16.32000132.34
FYH-300/70LGJ-300/7020.96.32000132.54
FYH-400/20LGJ-400/2022.36.32200142.80
FYH-400/25LGJ-400/2522.16.32200142.80
FYH-400/35LGJ-400/3522.36.32200142.80
FYH-400/50LGJ-400/5023.06.32200142.80
FYH-400/65LGJ-400/6523.26.32200142.83
FYH-400/95LGJ-400/9524.86.32200142.85
FYH-500/35LGJ-500/3524.96.32500163.48
FYH-500/45LGJ-500/4524.96.32500163.48
FYH-500/65LGJ-500/6525.76.32500163.50
FYH-630/45LGJ-630/4527.97.82500155.32
FYH-630/55LGJ-630/5528.57.82500155.40
FYH-630/80LGJ-630/8028.97.82500155.40
FYH-720/50ACSR-720/5031.07.83000156.20
FYH-800/55LGJ-800/5531.87.82500176.02
FYH-800/70LGJ-800/7032.17.82500176.10
FYH-800/100LGJ-800/10032.37.82500176.20

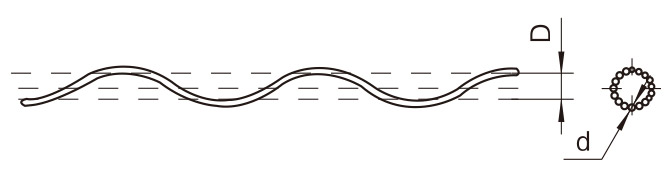

预绞式护线条 — 结构尺寸参考图 1
CCK Power Fittings

询价时需要提供

线缆类型、准确外径、材料、丝条长度、握力要求及配套连接件
