Copper-aluminium cable lugs for conductor-to-equipment connections. Match the conductor size, fixing hole and crimp dimensions to the selected model.
Product details
- Product
- Copper-aluminium cable lugs
- Category
- Cable terminals and connecting sleeves
- Model references
- DTL-10 / DTL-16 / DTL-25 / DTL-35 / DTL-50 / DTL-70 / DTL-95 / DTL-120 / DTL-150 / DTL-185 / DTL-240 / DTL-300 / DTL-400 / DTL-500 / DTL-630 / DTL-800
- Materials
- Confirm for the selected model and drawing
- Standards
- To be agreed in the project specification
Specifications and drawings

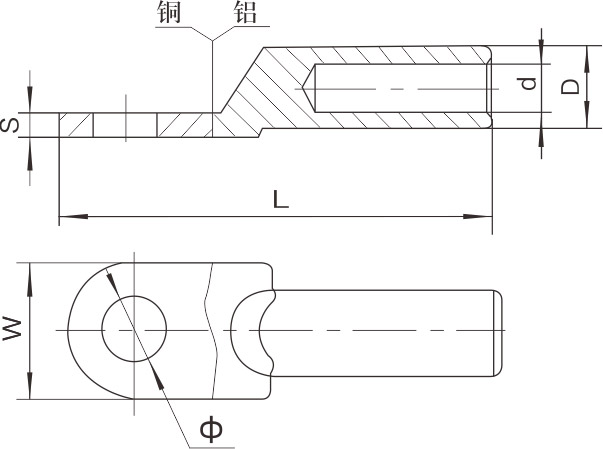

Check the model, units and dimension symbols against the drawing. Breaking loads and working loads are different values and must not be used interchangeably.
| Model | Main Dimensions(mm) | |||||
|---|---|---|---|---|---|---|
| Diameter | D | d | L | W | S | |
| DTL-10 | 8.4 | 10 | 5.0 | 65 | 16 | 2.7 |
| DTL-16 | 8.4 | 10 | 5.5 | 70 | 16 | 3.0 |
| DTL-25 | 8.4 | 12 | 7.0 | 75 | 18 | 3.5 |
| DTL-35 | 10.5 | 14 | 8.5 | 85 | 20 | 3.5 |
| DTL-50 | 10.5 | 16 | 9.5 | 90 | 23 | 4.0 |
| DTL-70 | 12.5 | 18 | 12.0 | 102 | 26 | 4.5 |
| DTL-95 | 12.5 | 21 | 13.0 | 112 | 28 | 5.0 |
| DTL-120 | 14.5 | 23 | 15.0 | 120 | 30 | 5.5 |
| DTL-150 | 14.5 | 25 | 16.0 | 126 | 34 | 6.0 |
| DTL-185 | 16.5 | 27 | 18.0 | 133 | 37 | 6.5 |
| DTL-240 | 16.5 | 30 | 20.0 | 140 | 40 | 7.5 |
| DTL-300 | 21.0 | 34 | 23.0 | 165 | 45 | 8.5 |
| DTL-400 | 21.0 | 38 | 26.0 | 170 | 52 | 9.5 |
| DTL-500 | 21.0 | 42 | 29.0 | 190 | 60 | 10.0 |
| DTL-630 | Square head | 54 | 34.0 | 225 | 78 | 10.5 |
| DTL-800 | Square head | 60 | 38.0 | 270 | 100 | 11.0 |
CCK Power Fittings
Information for quotation
conductor material and cross-section, terminal hole size and length, installation tools and contact surfaces
