Aluminium connecting terminals
CCK Power Fittings
Aluminium connecting terminals for connecting a conductor end to an equipment terminal.
Product details
- Product
- Aluminium connecting terminals
- Category
- Cable terminals and connecting sleeves
- Model references
- DL-16 / DL-25 / DL-35 / DL-50 / DL-70 / DL-95 / DL-120 / DL-150 / DL-185 / DL-240 / DL-300 / DL-400 / DL-500 / DL-630 / DL-800 / DL-16S / DL-25S / DL-35S / DL-50S / DL-70S / DL-95S / DL-120S / DL-150S / DL-185S / DL-240S / DL-300S / DL-400S
- Materials
- Aluminium
- Standards
- To be agreed in the project specification
Specifications and drawings
Check the model, units and dimension symbols against the drawing. Breaking loads and working loads are different values and must not be used interchangeably.

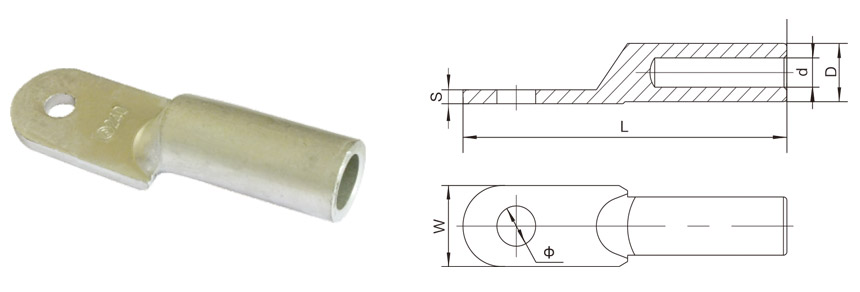

| Model | Main Dimensions(mm) | |||||
|---|---|---|---|---|---|---|
| Diameter | D | d | L | W | S | |
| DL-16 | 8.4 | 10 | 5.5 | 70 | 16 | 3.0 |
| DL-25 | 8.4 | 12 | 7.0 | 75 | 18 | 3.5 |
| DL-35 | 10.5 | 14 | 8.5 | 85 | 20 | 3.5 |
| DL-50 | 10.5 | 16 | 9.5 | 90 | 23 | 4.0 |
| DL-70 | 12.5 | 18 | 12.0 | 102 | 26 | 4.5 |
| DL-95 | 12.5 | 21 | 13.0 | 112 | 28 | 5.0 |
| DL-120 | 14.5 | 23 | 15.0 | 120 | 30 | 5.5 |
| DL-150 | 14.5 | 25 | 16.0 | 126 | 34 | 6.0 |
| DL-185 | 16.5 | 27 | 18.0 | 133 | 37 | 6.5 |
| DL-240 | 16.5 | 30 | 20.0 | 140 | 40 | 7.5 |
| DL-300 | 21.0 | 34 | 23.0 | 165 | 45 | 8.5 |
| DL-400 | 21.0 | 38 | 26.0 | 170 | 52 | 9.5 |
| DL-500 | 21.0 | 42 | 29.0 | 190 | 60 | 10.0 |
| DL-630 | Square head | 54 | 34.0 | 225 | 78 | 10.5 |
| DL-800 | Square head | 60 | 38.0 | 270 | 100 | 11.0 |

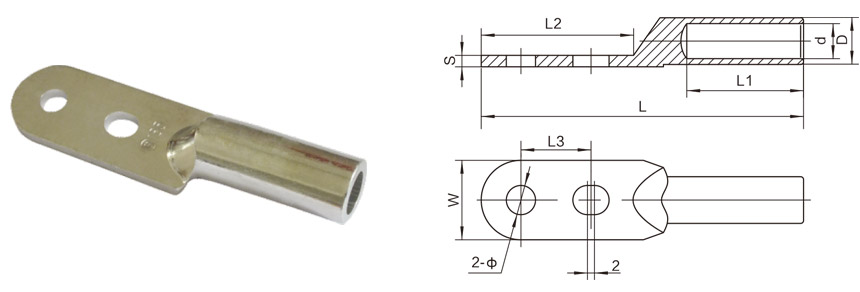

| Model | Main Dimensions(mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Diameter | D | d | L | L1 | L2 | L3 | W | S | |
| DL-16S | 8.4 | 10 | 5.5 | 90 | 32 | 45 | 20 | 18 | 3.0 |
| DL-25S | 8.4 | 12 | 7.0 | 93.5 | 34 | 45 | 20 | 20 | 3.2 |
| DL-35S | 10.5 | 14 | 8.5 | 104 | 40 | 50 | 20 | 23 | 3.6 |
| DL-50S | 10.5 | 16 | 9.5 | 112 | 42 | 50 | 20 | 23 | 4.0 |
| DL-70S | 12.5 | 18 | 12.0 | 125 | 47 | 62 | 25 | 28 | 4.5 |
| DL-95S | 12.5 | 21 | 13.0 | 136 | 50 | 62 | 25 | 28 | 4.8 |
| DL-120S | 14.5 | 23 | 15.0 | 145 | 53 | 72 | 30 | 34 | 5.5 |
| DL-150S | 14.5 | 25 | 16.0 | 156 | 55 | 72 | 30 | 34 | 6.0 |
| DL-185S | 14.5 | 27 | 18.0 | 162 | 58 | 80 | 35 | 40 | 6.7 |
| DL-240S | 14.5 | 30 | 20.0 | 170 | 60 | 80 | 35 | 40 | 7.0 |
| DL-300S | 16.5 | 34 | 23.0 | 190 | 65 | 90 | 40 | 50 | 8.5 |
| DL-400S | 21.0 | 38 | 26.0 | 200 | 70 | 90 | 40 | 50 | 8.5 |

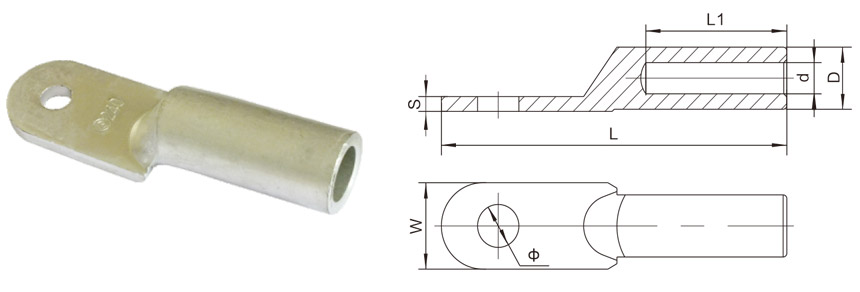

| Model | Main Dimensions(mm) | ||||||
|---|---|---|---|---|---|---|---|
| Diameter | D | d | L | L1 | W | S | |
| DL-16 | 8.5 | 10 | 6.0 | 75 | 32 | 16 | 3.5 |
| DL-25 | 8.5 | 12 | 7.0 | 75 | 34 | 18 | 3.5 |
| DL-35 | 10.5 | 14 | 8.5 | 90 | 40 | 23 | 4.3 |
| DL-50 | 10.5 | 16 | 9.7 | 92 | 42 | 23 | 4.8 |
| DL-70 | 10.5 | 18 | 11.5 | 110 | 46 | 28 | 5.2 |
| DL-95 | 10.5 | 21 | 13.5 | 112 | 48 | 28 | 5.7 |
| DL-120 | 12.5 | 23 | 15.0 | 125 | 55 | 34 | 6.8 |
| DL-150 | 12.5 | 25 | 16.5 | 127 | 55 | 34 | 7.0 |
| DL-185 | 12.5 | 27 | 18.5 | 140 | 58 | 40 | 7.8 |
| DL-240 | 12.5 | 30 | 21.0 | 142 | 60 | 40 | 8.3 |
| DL-300 | 16.5 | 34 | 23.0 | 160 | 65 | 45 | 9.0 |
CCK Power Fittings
CCK Power Fittings
CCK Power Fittings
Information for quotation
conductor material and cross-section, terminal hole size and length, installation tools and contact surfaces
Contact CCK ↗Related products
