Stainless Steel Clamp

Guy wire fittings

Stainless Steel Clamp. A line component identified in the reference catalog.

Product details

Product: Stainless Steel Clamp
Category: Guy wire fittings
Model references: Please provide the required model or drawing
Materials: Confirm for the selected model and drawing
Standards: To be agreed in the project specification

Specifications and drawings

Check the model, units and dimension symbols against the drawing. Breaking loads and working loads are different values and must not be used interchangeably.

Specification table 1
NAME	Diameter（mm）	NAME	Diameter（mm）	NAME	Diameter（mm）	NAME	Diameter（mm）
Small American style Clamp	8-16		8-12		8-12		8-16
	11-20		8-16		8-16		11-20
	13-23		12-20		12-20		13-23
Great American Style Clamp	14-27	German style Clamp	12-22	German-style Quick-install Type Card Rings	12-22	Quick-install type card ring	14-27
	18-32		16-25		16-25		18-32
	21-38		16-27		16-27		21-38
	23-44		20-32		20-32		23-44
	27-51		25-40		25-40		27-51
	33-57		30-45		30-45		33-57
	40-63		32-50		32-50		40-63
	52-76		40-60		40-60		52-76
	46-70		45-65		45-65		46-70
	59-82		50-70		50-70		59-82
	65-89		55-75		55-75		65-89
	72-95		60-80		60-80		72-95
	78-101		70-90		70-90		78-101
	84-108		80-100		80-110		84-110
	91-114		90-110		90-120		91-130
	105-127		100-120		100-130		105-150
	118-140		110-130		110-140		118-160
	130-152		120-140		120-150		130-180
	141-165		130-150		130-160		141-190
	165-178		140-160		140-180		165-215
	175-197		150-170		150-200		175-225
	194-216		160-180		160-210		194-250
	213-235		180-200		180-230		213-270
	232-254		200-220		200-260		232-290
	270-292		220-240		220-280		270-330
	289-330		240-260		240-350		289-341

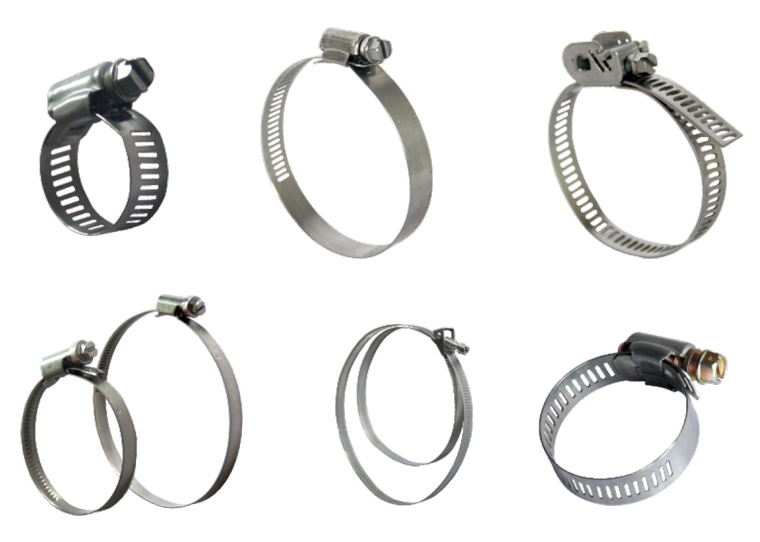

Stainless Steel Clamp — dimension drawing 1

Information for quotation

guy-wire construction and diameter, design tension, adjustment range, end fittings and surface treatment

Contact CCK ↗
