Copper Parallel Groove Clamp
CCK Power Fittings
Copper Parallel Groove Clamp. Connects two conductors in parallel grooves.
Product details
- Product
- Copper Parallel Groove Clamp
- Category
- Splicing fittings
- Model references
- JBT-10 / JBT-35 / JBT-50
- Materials
- Confirm for the selected model and drawing
- Standards
- To be agreed in the project specification

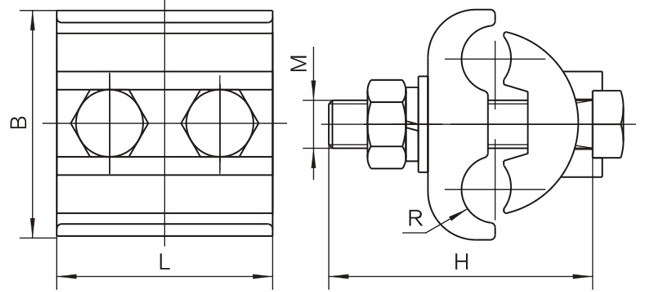

Specifications and drawings
Check the model, units and dimension symbols against the drawing. Breaking loads and working loads are different values and must not be used interchangeably.
| Model | Suitable Conductor (mm2) | Main Dimensions(mm) | Bolt No. | ||||
|---|---|---|---|---|---|---|---|
| L | B | H | R | M | |||
| JBT-10~70 two sections | 10~70 | 40 | 34 | 45 | 5 | 8 | 2 |
| JBT-10~70three sections | 10~70 | 60 | 34 | 45 | 5 | 8 | 3 |
| JBT-35~120 two sections | 35~120 | 45 | 45 | 55 | 7 | 10 | 2 |
| JBT-35~120three sections | 35~120 | 70 | 45 | 55 | 7 | 10 | 3 |
| JBT-50~240two sections | 50~240 | 45 | 57 | 65 | 10 | 10 | 2 |
| JBT-50~240three sections | 50~240 | 70 | 57 | 65 | 10 | 10 | 3 |
CCK Power Fittings
Information for quotation
conductor material and cross-section, load-bearing requirements, connection method, tools and electrical performance
