Shackle

Link fittings

Shackle for mechanical connections between line hardware components.

Product details

Product: Shackle
Category: Link fittings
Model references: U-7 / U-10 / U-12 / U-16 / U-21 / U-25 / U-30 / U-0770 / U-1085 / U-1290 / U-1695 / U-21100 / U-25110 / U-32115 / UK-0770 / UK-1085 / UK-1290 / UK-1695 / UK-21100 / UK-32130 / UK-0770T / UK-1290T
Materials: Hot-dip galvanized steel / Stainless steel
Standards: To be agreed in the project specification

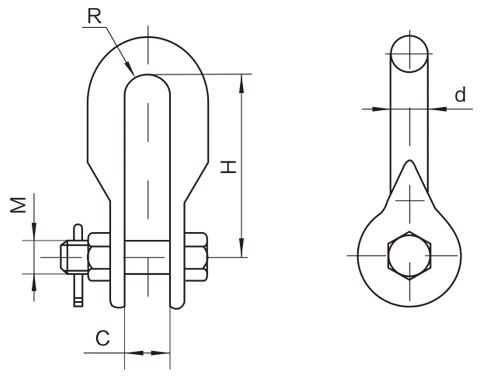

Specifications and drawings

Check the model, units and dimension symbols against the drawing. Breaking loads and working loads are different values and must not be used interchangeably.

Specification table 1
Stable design Catalog No.	Model	Main Dimensions(mm)					Specified Failure Load (kN)	Weight (kg)
Stable design Catalog No.	Model	C	M	d	H	R	Specified Failure Load (kN)	Weight (kg)
	U-7	20	16	16	80	10	70	0.44
	U-10	22	18	18	85	11	100	0.54
	U-12	24	22	20	90	12	120	0.96
	U-16	26	24	22	95	13	160	1.47
	U-21	30	27	25	100	15	210	2.20
	U-25	34	30	28	110	17	250	2.79
	U-30	38	36	30	130	19	300	3.75
U-0770		20	16	16	70	10	70	0.50
U-1085		20	18	16	85	10	100	0.60
U-1290		22	22	18	90	11	120	1.00
U-1695		24	24	20	95	12	160	1.50
U-21100		24	24	20	100	12	210	1.80
U-25110		28	27	24	110	14	250	2.10
U-32115		36	32	28	130	18	320	3.00
UK-0770		24	16	16	70	12	70	0.50
UK-1085		26	18	16	85	13	100	0.60
UK-1290		26	22	18	90	13	120	1.10
UK-1695		28	24	20	95	14	160	1.50
UK-21100		30	24	20	100	15	210	1.80
UK-32130		36	30	28	130	18	320	3.40
UK-0770T		28	16	16	70	12	70	0.50
UK-1290T		28	22	18	90	13	120	1.10

Information for quotation

connection type, hole diameter and spacing, pin dimensions, plate thickness and mechanical load
