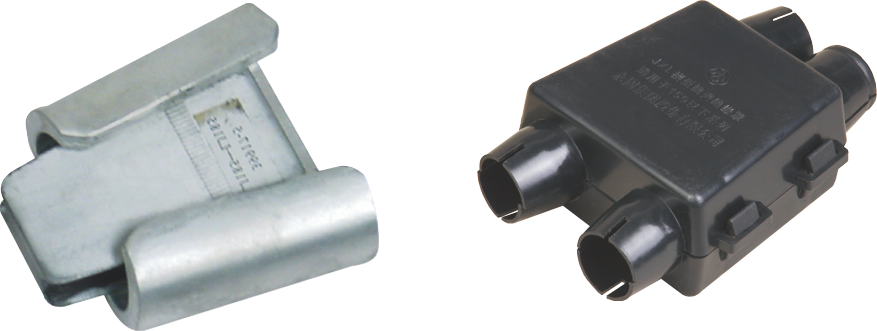

JXD 楔型线夹及绝缘罩
CCK Power Fittings
JXD 楔型线夹及绝缘罩用于拉线端部的夹持连接。
产品资料
- 产品名称
- JXD 楔型线夹及绝缘罩
- 类别
- 导线与设备连接金具
- 型号
- LJ-16 / LJ-25 / LJ-35 / LJ-50 / LJ-70 / LJ-95 / LJ-120 / LJ-150 / LJ-185 / LJ-210 / LJ-240 / LJ-300 / LGJ-35/6 / LGJ-50/8 / LGJ-70/10 / LGJ-95/15 / LGJ-120/20 / LGJ-150/20 / LGJ-185/25 / LGJ-240/30 / LGJ-70/40 / LGJ-120/25 / LGJ-150/25 / JKLYJ-16 / JKLYJ-25 / JKLYJ-35 / JKLYJ-50 / JKLYJ-70 / JKLYJ-95 / JKLYJ-120 / JKLYJ-150 / JKLYJ-185 / JKLYJ-240 / JKLGYJ-35/6 / JKLGYJ-50/8 / JKLGYJ-70/10 / JKLGYJ-95/15 / JKLGYJ-95/20 / JKLGYJ-120/7 / JKLGYJ-120/20 / JKLGYJ-120/25 / JKLGYJ-150/8 / JKLGYJ-150/20 / JKLGYJ-185/10 / JKLGYJ-185/25 / JKLGYJ-185/30 / JKLGYJ-185/45 / JKLGYJ-240/30 / JKLGYJ-240/40
- 材料
- 铝
- 标准
- 按项目技术要求确认

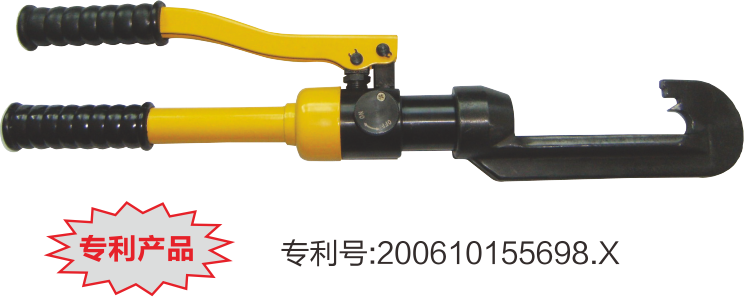

规格与图纸
核对型号、单位及图纸上的尺寸符号。表列破坏载荷与工作载荷不同，不应直接替用。
| 主导线/支导线/线夹代号 | LJ-16 (5.1) | LJ-25 (6.45) | LJ-35 (7.5) | LJ-50 (9.0) | LJ-70 (10.8) | LJ-95 (12.48) | LJ-120 (14.25) | LJ-150 (15.75) | LJ-185 (17.5) | LJ-210 (18.75) | LJ-240 (20.0) | LJ-300 (22.4) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LJ-16(5.1) | 14405-1 | 14405-8 | 14406-3 | 15407-3 | 16408-3 | 17408-6 | 18409-7 | 28410-4 | 39411-3 | 31412-0 | 42412-6 | 42413-8 |
| LJ-25(6.45) | 14406-5 | 14407-0 | 15407-7 | 16408-9 | 17409-4 | 18410-4 | 28411-1 | 39412-0 | 31412-7 | 42413-2 | 42414-4 | |
| LJ-35(7.5) | 14407-5 | 15408-3 | 16409-5 | 17410-0 | 18410-9 | 28411-6 | 39412-5 | 31413-2 | 42413-8 | 42415-0 | ||
| LJ-50(9.0) | 15509-0 | 16509-8 | 17510-9 | 18511-9 | 28512-6 | 39513-4 | 31514-2 | 42514-5 | 42515-6 | |||
| LJ-70(10.8) | 16611-1 | 17611-8 | 18612-8 | 28613-3 | 39614-3 | 31615-1 | 42615-7 | 42616-5 | ||||
| LJ-95(12.48) | 17712-1 | 18713-2 | 28713-9 | 39714-8 | 31715-5 | 42716-1 | 42717-3 | |||||
| LJ-120(14.25) | 18814-3 | 28815-0 | 39815-9 | 31816-6 | 42817-1 | 42818-3 | ||||||
| LJ-150(15.75) | 28815-8 | 39816-6 | 31817-3 | 42817-9 | 42819-1 | |||||||
| LJ(TJ)-185(17.5) | 39917-5 | 31918-2 | 42919-1 | 42920-0 | ||||||||
| LJ(TJ)-210(18.75) | 31118-8 | 42119-4 | 42120-6 | |||||||||
| LJ(TJ)-240(20.0) | 42220-0 | 42221-2 | ||||||||||
| LJ(TJ)-300(22.4) | 42222-4 |
| 主导线/支导线/线夹代号 | LGJ-35/6 8.16 | LGJ-50/8 9.60 | LGJ-70/10,40 | LGJ-95/15,20 | LGJ-120/20,25 | LGJ-150/20,25 | LGJ-185/25,30 | LGJ-240/30,40,55 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11.40 | 13.60 | 13.61 | 13.87 | 15.07 | 115.74 | 16.67 | 17.10 | 18.9018.88 | 21.6021.66 | |||
| LGJ-35/6 | 15508-2 | 15509-0 | 16509-8 | 17510-9 | 17510-9 | 28411-6 | 28512-0 | 39412-5 | 39512-8 | 31513-5 | 42514-9 | |
| LGJ-50/8 | 15509-6 | 16510-5 | 17511-6 | 17511-6 | 28512-6 | 28512-6 | 39513-4 | 39513-4 | 31514-2 | 42515-6 | ||
| LGJ-70/10 | 16611-4 | 17612-5 | 17612-5 | 28613-3 | 28613-6 | 39614-3 | 39614-3 | 31615-1 | 42616-5 | |||
| LGJ-70/40 | 17713-9 | 17713-9 | 28714-3 | 28714-8 | 39715-3 | 39715-3 | 31716-3 | 42717-7 | ||||
| LGJ-95/15,20 | 17713-9 | 28714-8 | 28714-8 | 39715-3 | 39715-7 | 31716-3 | 42717-7 | |||||
| LGJ-120/20 | 28815-0 | 28815-4 | 39815-9 | 39816-2 | 31817-3 | 42818-3 | ||||||
| LGJ-120/25 | 28815-8 | 39816-2 | 39816-6 | 31817-3 | 42818-7 | |||||||
| LGJ-150/20 | 39916-7 | 39916-9 | 31917-8 | 42919-1 | ||||||||
| LGJ-150/25 | 39917-1 | 31918-2 | 42919-6 | |||||||||
| LGJ-185/25,30 | 31118-8 | 42120-2 | ||||||||||
| LGJ-240/30,40,55 | 42221-6 | |||||||||||
| LJ-16(5.1) | 15406-6 | 15407-3 | 16408-3 | 17409-4 | 17409-4 | 28410-4 | 28410-4 | 39410-9 | 39411-3 | 31412-0 | 42413-4 | |
| LJ-25(6.45) | 15407-3 | 15408-3 | 16408-9 | 17410-0 | 17410-0 | 28410-8 | 28411-1 | 39411-6 | 39412-0 | 31412-7 | 42414-0 | |
| LJ-35(7.5) | 15407-7 | 15408-6 | 16409-5 | 17410-7 | 17410-7 | 28411-6 | 28411-6 | 39412-0 | 39412-5 | 31413-2 | 42414-6 | |
| LJ-50(9.0) | 15508-6 | 15509-6 | 16510-5 | 17511-6 | 17511-6 | 28512-0 | 28512-6 | 39512-8 | 39513-4 | 31514-2 | 42515-6 | |
| LJ-70(10.8) | 16509-8 | 16510-5 | 16611-1 | 17612-5 | 17612-5 | 28612-9 | 28613-3 | 39613-7 | 39614-3 | 31615-1 | 42616-5 | |
| LJ-95(12.48) | 17510-1 | 17510-9 | 17611-8 | 17713-0 | 17713-0 | 28613-6 | 28713-9 | 39614-3 | 39714-8 | 31715-1 | 42716-9 | |
| LJ-120(14.25) | 18511-2 | 18511-9 | 18612-8 | 18714-1 | 18714-1 | 28815-0 | 28815-0 | 39715-7 | 39815-9 | 31816-6 | 42817-9 | |
| LJ-150(15.75) | 28512-0 | 28512-6 | 28613-6 | 28714-8 | 28714-8 | 28815-4 | 28815-8 | 39816-2 | 39816-6 | 31817-3 | 42818-7 | |
| LJ(TJ)-185(17.5) | 39512-8 | 39513-4 | 39614-3 | 39715-7 | 39715-7 | 39816-2 | 39816-6 | 39917-1 | 39917-3 | 31918-2 | 42919-6 | |
| LJ(TJ)-210(18.75) | 31513-5 | 31514-2 | 31615-1 | 31716-3 | 31716-3 | 31817-3 | 31817-3 | 31917-8 | 31918-2 | 31118-8 | 42120-2 | |
| LJ(TJ)-240(20.0) | 42414-0 | 42514-9 | 42615-7 | 42716-8 | 42716-9 | 42817-5 | 42817-9 | 42918-6 | 42918-6 | 42119-4 | 42220-8 | |
| 主导线/支导线/线夹代号 | JKLYJ-16 (4-8) | JKLYJ-25 (6.0) | JKLYJ-35 (7.0) | JKLYJ-50 (8.4) | JKLYJ-70 (10.0) | JKLYJ-95 (11-6) | JKLYJ-120 (13.0) | JKLYJ-150 (14.6) | JKLYJ-185 (16.2) | JKLYJ-240 (18.4) |
|---|---|---|---|---|---|---|---|---|---|---|
| JKLYJ-16 (4.8) | 14405-1 | 14405-1 | 14405-8 | 14406-5 | 14407-5 | 15408-3 | 17408-6 | 18409-7 | 28410-4 | 39411-3 |
| JKLYJ-25 (6.0) | 14405-8 | 14406-5 | 15407-3 | 16408-3 | 17408-6 | 18409-7 | 18410-4 | 28411-1 | 31412-0 | |
| JKLYJ-35 (7.0) | 14407-0 | 15407-7 | 15408-5 | 16409-3 | 17410-0 | 28410-8 | 39411-6 | 31412-7 | ||
| JKLYJ-50 (8.4) | 15408-3 | 15509-2 | 16510-0 | 17510-7 | 28511-5 | 39512-3 | 31513-4 | |||
| JKLYJ-70 (10.0) | 15510-0 | 16510-8 | 17511-5 | 28512-3 | 39513-1 | 31514-2 | ||||
| JKLYJ-95 (11.6) | 16611-6 | 17612-3 | 28613-1 | 39613-9 | 31615-0 | |||||
| JKLYJ-120 (13.0) | 17713-0 | 28713-8 | 39714-6 | 31715-7 | ||||||
| JKLYJ-150 (14.6) | 28814-6 | 39815-4 | 31816-5 | |||||||
| JKLYJ-185 (16.2) | 39916-2 | 31917-3 | ||||||||
| JKLYJ-240 (18.4) | 31118-4 |
| 主导线/支导线/线夹代号 | JKLGYJ-35/6 (7.75) | JKLGYJ-50/8 (9.12) | JKLGYJ-70/10 (10.83) | JKLGYJ-95/15 (12.93) | JKLGYJ-95/20 (13.18) | JKLGYJ-120/7 (13.78) | JKLGYJ-120/20 (14.32) | JKLGYJ-120/25 (14.95) | JKLGYJ-150/8 (15.2) | JKLGYJ-150/20 (15.84) | JKLGYJ-185/10 (17.1) | JKLGYJ-185/25 (17.96) | JKLGYJ-185/30 (17.94) | JKLGYJ-185/45 (18.62) | JKLGYJ-240/30 (20.52) | JKLGYJ-240/40 (20.58) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JKLGYJ-35/6 (7.75) | 15407-7 | 15408-3 | 16409-5 | 18410-4 | 18410-4 | 17410-7 | 28410-8 | 28411-6 | 28411-6 | 28411-6 | 39412-6 | 39512-8 | 39512-8 | 31413-2 | 42414-0 | 42414-0 |
| JKLGYJ-50/8 (9.12) | 15408-3 | 16409-5 | 16509-8 | 16611-1 | 16611-1 | 17511-6 | 28411-6 | 28512-0 | 28512-0 | 28512-6 | 31413-2 | 39513^1 | 395134 | 31514-2 | 42415-0 | 42415-0 |
| JKLGYJ-70/10 (10.83) | 16409-5 | 16509-8 | 16611-1 | 17611-8 | 17611-8 | 17612-5 | 28512-6 | 28612-9 | 28612-9 | 28613-3 | 31514-2 | 39614-3 | 39614-3 | 39614-3 | 42515-6 | 42515-6 |
| JKLGYJ-95/15 (12.93) | 18410-4 | 16611-1 | 17611-8 | 17713-0 | 17713-0 | 18713-2 | 28613-6 | 28613-6 | 28713-9 | 28714-3 | 31615-1 | 39715-3 | 39715-3 | 31715-1 | 42616-5 | 42616-5 |
| JKLGYJ-95/20 (13.18) | 18410-4 | 16611-1 | 17611-8 | 17713-0 | 17713-0 | 18713-2 | 28613-6 | 28713-9 | 28713-9 | 28714-8 | 31615-1 | 39715-7 | 39715-7 | 39815-9 | 42616-5 | 42616-5 |
| JKLGYJ-120/7 (13.78) | 17410-7 | 17511-6 | 17612-5 | 18713-2 | 18713-2 | 17713-9 | 28713-9 | 28714-3 | 28714-8 | 28714-8 | 39715-3 | 39815-9 | 39815-9 | 31716-3 | 42817-1 | 42817-1 |
| JKLGYJ-120/20 (14.32) | 28410-8 | 28411-6 | 28512-6 | 28613-6 | 28613-6 | 28713-9 | 28714-3 | 28714-8 | 28714-8 | 28815-0 | 39715-7 | 31716-3 | 31716-3 | 31716-3 | 42717-3 | 42717-3 |
| JKLGYJ-120/25 (14.95) | 28411-6 | 28512-0 | 28612-9 | 28613-6 | 28713-9 | 28713-9 | 28714-8 | 28714-8 | 28815-0 | 28815-^ | 39815-9 | 31616-3 | 31616-3 | 39816-6 | 42717-7 | 42717-7 |
| JKLGYJ-150/8 (15.2) | 28411-6 | 28512-0 | 28612-9 | 28713-9 | 28713-9 | 28714-8 | 28714-8 | 28815-0 | 28815-0 | 28815-4 | 31716-3 | 39816-6 | 39816-6 | 39916-9 | 42717-7 | 42717-7 |
| JKLGYJ-150/20 (15.84) | 28411-6 | 28512-6 | 28613-3 | 28714-3 | 28714-8 | 28714-8 | 28815-0 | 28815-4 | 28815-8 | 28815-8 | 31716-3 | 39916-9 | 39916-9 | 31817-3 | 42817-9 | 42817-9 |
| JKLGYJ-185/10 (17.1) | 39412-5 | 31413-2 | 31514-2 | 31615-1 | 31615-1 | 39715-3 | 39715-7 | 39815-9 | 31716-3 | 31716-3 | 31817-3 | 31817-3 | 31817-3 | 31918-2 | 42818-7 | 42818-7 |
| JKLGYJ-185/25 (17.96) | 39512-8 | 39513-4 | 39614-3 | 39715-3 | 39715-7 | 39815-9 | 31716-3 | 31716-3 | 39816-6 | 39916-9 | 31817-3 | 31918-2 | 31918-2 | 31918-2 | 42919-1 | 42919-1 |
| JKLGYJ-185/30 (17.94) | 39512-8 | 39513-4 | 39614-3 | 39715-3 | 39715-7 | 39815-9 | 31716-3 | 31716-3 | 39816-6 | 39916-9 | 31817-3 | 31918-2 | 31918-2 | 31918-2 | 42919-1 | 42919-1 |
| JKLGYJ-185/45 (18.62) | 31413-2 | 31514-2 | 39614-3 | 31715-1 | 39815-9 | 31716-3 | 31716-3 | 39816-6 | 39916-9 | 31817-3 | 31918-2 | 31918-2 | 31918-2 | 31118-8 | 42119-4 | 42119-4 |
| JKLGYJ-240/30 (20.52) | 42414-0 | 42415-0 | 42515-6 | 42616-5 | 42616-5 | 42817-1 | 42717-3 | 42717-7 | 42717-7 | 42817-9 | 42818-7 | 42819-1 | 42819-1 | 42919-6 | 42120-2 | 42120-2 |
| JKLGYJ-240/40 (20.58) | 42414-0 | 42415-0 | 42515-6 | 42616-5 | 42616-5 | 42817-1 | 42717-3 | 42717-7 | 42717-7 | 42817-9 | 42818-7 | 42919-1 | 42919-1 | 42119-6 | 42120-2 | 42120-2 |
CCK Power Fittings
CCK Power Fittings
询价时需要提供
导体规格、设备端子图纸、接触材料、孔距、连接方法及性能要求
联系 CCK ↗同类产品
规格参考资料：www.yonguexport.com · 实际供货以确认图纸与报价为准。
