CCK / Splicing fittings
钢芯铝绞线及钢绞线补修管
CCK Power Fittings
钢芯铝绞线及钢绞线补修管。套管式导体修补金具，用于导线局部修补。
产品资料
- 产品名称
- 钢芯铝绞线及钢绞线补修管
- 类别
- 接续金具
- 型号
- JX-70/10 / LGJ-70/10 / JX-70/40 / LGJ-70/40 / JX-95 / LGJ-95/15/20 / JX-95/55 / LGJ-95/55 / JX-120 / LGJ-120/7/20 / JX-150 / LGJ-150/20/25 / JX-150/35 / LGJ-150/35 / JX-185/10 / LGJ-185/10 / JX-185 / LGJ-185/25/45 / JX-210 / J-210/25/35 / JX-240 / LGJ-240/30/40 / JX-240/55 / LGJ-240/55 / JX-300/15 / LGJ-300/15 / JX-300 / LGJ-300/20/25/40/50 / JX-300/70 / LGJ-300/70 / JX-400 / LGJ-400/20/25/35/50 / JX-400/65 / LGJ-400/65 / JX-400/95 / LGJ-400/95 / JX-500 / LGJ-500/35/45/65 / JX-560/40 / LGJ-560/40 / JX-630 / LGJ-630/45/55/80 / JX-800/55 / LGJ-800/55 / JX-800 / LGJ-800/70/100 / JX-25G / GJ-25 / JX-35G / GJ-35 / JX-50G / GJ-50 / JX-55G / GJ-55 / JX-70G / GJ-70 / JX-80G / GJ-800 / JX-100G / GJ-100 / JX-120G / GJ-120 / JX-150G / GJ-150
- 材料
- 铝
- 标准
- 按项目技术要求确认

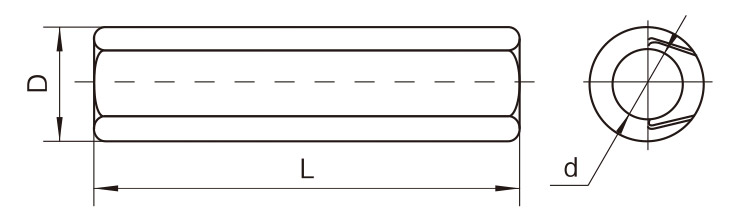

规格与图纸
核对型号、单位及图纸上的尺寸符号。表列破坏载荷与工作载荷不同，不应直接替用。
| 型号 | Suitable Conductor (mm2) | Main Dimensions(mm) | 重量（kg） | ||
|---|---|---|---|---|---|
| D | d | L | |||
| JX-70/10 | LGJ-70/10 | 22 | 6.25 | 150 | 0.11 |
| JX-70/40 | LGJ-70/40 | 24 | 8.10 | 150 | 0.10 |
| JX-95 | LGJ-95/15/20 | 24 | 7.25 | 170 | 0.14 |
| JX-95/55 | LGJ-95/55 | 32 | 9.00 | 170 | 0.26 |
| JX-120 | LGJ-120/7/20 | 30 | 8.25 | 170 | 0.23 |
| JX-150 | LGJ-150/20/25 | 30 | 9.00 | 170 | 0.21 |
| JX-150/35 | LGJ-150/35 | 32 | 9.50 | 170 | 0.24 |
| JX-185/10 | LGJ-185/10 | 32 | 10.00 | 170 | 0.23 |
| JX-185 | LGJ-185/25/45 | 32 | 10.50 | 170 | 0.22 |
| JX-210 | LG J-210/25/35 | 34 | 11.00 | 220 | 0.32 |
| JX-240 | LGJ-240/30/40 210/50 | 36 | 11.50 | 220 | 0.36 |
| JX-240/55 | LGJ-240/55 | 36 | 12.00 | 220 | 0.34 |
| JX-300/15 | LGJ-300/15 | 40 | 12.50 | 270 | 0.56 |
| JX-300 | LGJ-300/20/25/40/50 | 40 | 13.00 | 270 | 0.53 |
| JX-300/70 | LGJ-300/70 | 42 | 13.50 | 270 | 0.60 |
| JX-400 | LGJ-400/20/25/35/50 | 45 | 14.50 | 320 | 0.81 |
| JX-400/65 | LGJ-400/65 | 48 | 15.00 | 320 | 0.96 |
| JX-400/95 | LGJ-400/95 | 48 | 15.50 | 320 | 0.92 |
| JX-500 | LGJ-500/35/45/65 | 52 | 16.00 | 320 | 1.15 |
| JX-560/40 | LGJ-560/40 | 60 | 17.00 | 340 | 1.77 |
| JX-630 | LGJ-630/45/55/80 | 60 | 18.00 | 370 | 1.81 |
| JX-800/55 | LGJ-800/55 | 65 | 20.00 | 370 | 2.06 |
| JX-800 | LGJ-800/70/100 | 65 | 20.50 | 370 | 2.01 |
| JX-25G | GJ-25 | 14 | 7.20 | 100 | 0.09 |
| JX-35G | GJ-35 | 16 | 8.40 | 120 | 0.12 |
| JX-50G | GJ-50 | 18 | 9.60 | 120 | 0.15 |
| JX-55G | GJ-55 | 20 | 10.30 | 120 | 0.23 |
| JX-70G | GJ-70 | 22 | 11.60 | 140 | 0.26 |
| JX-80G | GJ-800 | 24 | 12.00 | 140 | 0.38 |
| JX-100G | GJ-100 | 26 | 14.00 | 160 | 0.48 |
| JX-120G | GJ-120 | 28 | 15.00 | 170 | 0.59 |
| JX-150G | GJ-150 | 32 | 16.50 | 200 | 0.93 |
CCK Power Fittings
询价时需要提供
导线材质与截面、承力要求、连接方式、安装工具及电气性能
联系 CCK ↗同类产品
规格参考资料：www.yonguexport.com · 实际供货以确认图纸与报价为准。
