CCK / Conductor and equipment connectors
SY / SYG 压缩型单导线设备线夹
CCK Power Fittings
SY / SYG 压缩型单导线设备线夹用于导线与电气设备接线端之间的连接，采用压接连接形式。
产品资料
- 产品名称
- SY / SYG 压缩型单导线设备线夹
- 类别
- 导线与设备连接金具
- 型号
- SY-35/6A / LGJ-35/6 / SY-50/8A / LGJ-50/8 / SY-70/10A / LGJ-70/10 / SY-95/15A / LGJ-95/15 / SV-120/7A / LGJ-120/7 / SY-120/20A / LGJ-120/20 / SY-150/8A / LGJ-150/8 / SY-150/20A / LGJ-150/20 / SV-185/10A / LGJ-185/10 / SY-185/25-30A / LGJ-185/25 / LGJ-185/30 / SY-210/10A / LGJ-210/10 / SY-210/25A / LGJ-210/25 / SY-240/30-40A / LGJ-240/30 / LGJ-240/40 / SY-300/15A / LGJ-300/15 / SY-300/20A / LGJ-300/20 / SY-300/25-40A / LGJ-300/25 / LGJ-300/40 / SY-400/20-35A / LGJ-400/20 / LGJ-400/25 / SY-400/20 / LGJ-400/35 / SY-400/50-65A / LGJ-400/50 / LGJ-400/65 / SY-500/35-45A / LGJ-500/35 / LGJ-500/45 / SY-500/65A / LGJ-500/65 / SY-630/45A / LGJ-630/45 / SY-630/55A / LGJ-630/55 / SY-800/55A / LGJ-800/55 / SY-800/7CH100A / LGJ-800/70 / SY-800/70-100A / LGJ-800/100 / SY-35/6B / SY-50/8B / SY-70/10B / SY-95/15B / SY-120/7B / SY-120/20B / SY-150/8B / SY-150/20B / SY-185/10B / SY-185/25-30B / SY-210/10B / SY-210/25B / SY-240/30-40B / SY-300/15B / SY-300/20B / SY-300/25-40B / SY-400/20-35B / SY-400/50-65B / SY-500/35-45B / SY-500/65B / SY-630/45B / SY-630/55B / SY-800/55B / SY-800/70-100B
- 材料
- 以具体型号与确认图纸为准
- 标准
- 按项目技术要求确认

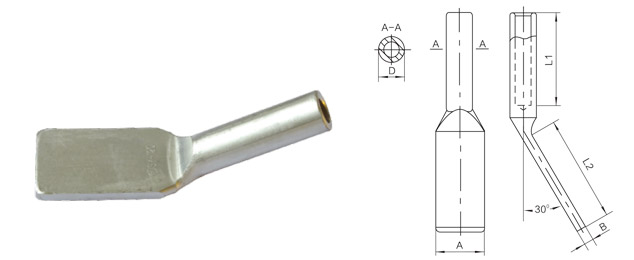

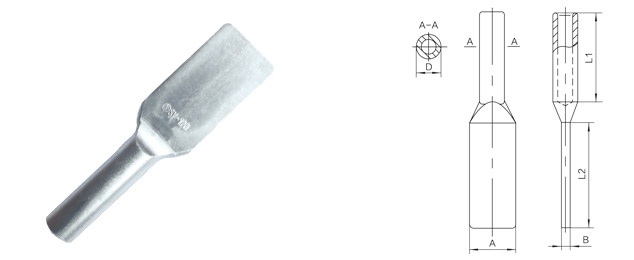

规格与图纸
核对型号、单位及图纸上的尺寸符号。表列破坏载荷与工作载荷不同，不应直接替用。
| 型号 | Conductor Dia(mm2) | Main Dimensions(mm) | 重量（kg） | |||||
|---|---|---|---|---|---|---|---|---|
| 型号 | 外径(mm) | A | B | D | L1 | L2 | ||
| SY-35/6A | LGJ-35/6 | 8.16 | 30 | 6.5 | 16 | 60 | 60 | 0.1 |
| SY-50/8A | LGJ-50/8 | 9.60 | 30 | 6.5 | 18 | 60 | 60 | 0.1 |
| SY-70/10A | LGJ-70/10 | 11.40 | 40 | 8 | 22 | 70 | 60 | 0.1 |
| SY-95/15A | LGJ-95/15 | 13.61 | 40 | 8 | 26 | 80 | 60 | 0.2 |
| SV-120/7A | LGJ-120/7 | 14.50 | 50 | 10 | 26 | 80 | 80 | 0.3 |
| SY-120/20A | LGJ-120/20 | 15.07 | 50 | 10 | 26 | 80 | 80 | 0.3 |
| SY-150/8A | LGJ-150/8 | 16.00 | 50 | 10 | 30 | 90 | 80 | 0.3 |
| SY-150/20A | LGJ-150/20 | 16.67 | 50 | 10 | 30 | 90 | 80 | 0.3 |
| SV-185/10A | LGJ-185/10 | 18.00 | 50 | 12 | 32 | 90 | 80 | 0.3 |
| SY-185/25-30A | LGJ-185/25 | 18.90 | 50 | 12 | 32 | 90 | 80 | 0.3 |
| SY-185/25-30A | LGJ-185/30 | 18.88 | 50 | 12 | 32 | 90 | 80 | 0.3 |
| SY-210/10A | LGJ-210/10 | 19.00 | 50 | 12 | 34 | 100 | 80 | 0.4 |
| SY-210/25A | LGJ-210/25 | 19.98 | 50 | 12 | 34 | 100 | 80 | 0.4 |
| SY-240/30-40A | LGJ-240/30 | 21.60 | 50 | 12 | 36 | 100 | 80 | 0.5 |
| SY-240/30-40A | LGJ-240/40 | 21.66 | 50 | 12 | 36 | 100 | 80 | 0.5 |
| SY-300/15A | LGJ-300/15 | 23.01 | 63 | 14 | 40 | 110 | 100 | 0.6 |
| SY-300/20A | LGJ-300/20 | 23.43 | 63 | 14 | 40 | 110 | 100 | 0.6 |
| SY-300/25-40A | LGJ-300/25 | 23.76 | 63 | 14 | 40 | 110 | 100 | 0.6 |
| SY-300/25-40A | LGJ-300/40 | 23.94 | 63 | 14 | 40 | 110 | 100 | 0.6 |
| SY-400/20-35A | LGJ-400/20 | 26.91 | 63 | 16 | 45 | 120 | 100 | 0.7 |
| SY-400/20-35A | LGJ-400/25 | 26.64 | 63 | 16 | 45 | 120 | 100 | 0.7 |
| SY-400/20〜35A | LGJ-400/35 | 26.82 | 63 | 16 | 45 | 120 | 100 | 0.7 |
| SY-400/50-65A | LGJ-400/50 | 27.63 | 63 | 16 | 45 | 120 | 100 | 0.7 |
| SY-400/50-65A | LGJ-400/65 | 28.00 | 63 | 16 | 45 | 120 | 100 | 0.7 |
| SY-500/35-45A | LGJ-500/35 | 30.00 | 80 | 16 | 52 | 130 | 100 | 1.0 |
| SY-500/35-45A | LGJ-500/45 | 30.00 | 80 | 16 | 52 | 130 | 100 | 1.0 |
| SY-500/65A | LGJ-500/65 | 30.96 | 80 | 16 | 52 | 130 | 100 | 1.0 |
| SY-630/45A | LGJ-630/45 | 33.60 | 100 | 20 | 60 | 150 | 100 | 1.2 |
| SY-630/55A | LGJ-630/55 | 34.32 | 100 | 20 | 60 | 150 | 100 | 1.2 |
| SY-800/55A | LGJ-800/55 | 38.40 | 125 | 22 | 65 | 170 | 125 | 2.1 |
| SY-800/7CH100A | LGJ-800/70 | 38.58 | 125 | 22 | 65 | 170 | 125 | 2.1 |
| SY-800/70-100A | LGJ-800/100 | 38.98 | 125 | 22 | 65 | 170 | 125 | 2.1 |
| 型号 | Conductor Dia (mm2) | Main Dimensions(mm) | 重量（kg） | |||||
|---|---|---|---|---|---|---|---|---|
| 型号 | 外径(mm) | A | B | D | L1 | L2 | ||
| SY-35/6B | LGJ-35/6 | 8.16 | 30 | 6.5 | 16 | 60 | 60 | 0.1 |
| SY-50/8B | LGJ-50/8 | 9.60 | 30 | 6.5 | 18 | 60 | 60 | 0.1 |
| SY-70/10B | LGJ-70/10 | 11.40 | 40 | 8 | 22 | 70 | 60 | 0.1 |
| SY-95/15B | LGJ-95/15 | 13.61 | 40 | 8 | 26 | 80 | 60 | 0.2 |
| SY-120/7B | LGJ-120/7 | 14.50 | 50 | 10 | 26 | 80 | 80 | 0.3 |
| SY-120/20B | LGJ-120/20 | 15.07 | 50 | 10 | 26 | 80 | 80 | 0.3 |
| SY-150/8B | LGJ-150/8 | 16.00 | 50 | 10 | 30 | 90 | 80 | 0.3 |
| SY-150/20B | LGJ-150/20 | 16.67 | 50 | 10 | 30 | 90 | 80 | 0.3 |
| SY-185/10B | LGJ-185/10 | 18.00 | 50 | 12 | 32 | 90 | 80 | 0.3 |
| SY-185/25-30B | LGJ-185/25 | 18.90 | 50 | 12 | 32 | 90 | 80 | 0.3 |
| SY-185/25-30B | LGJ-185/30 | 18.88 | 50 | 12 | 32 | 90 | 80 | 0.3 |
| SY-210/10B | LGJ-210/10 | 19.00 | 50 | 12 | 34 | 100 | 80 | 0.4 |
| SY-210/25B | LGJ-210/25 | 19.98 | 50 | 12 | 34 | 100 | 80 | 0.4 |
| SY-240/30-40B | LGJ-240/30 | 21.60 | 50 | 12 | 36 | 100 | 80 | 0.5 |
| SY-240/30-40B | LGJ-240/40 | 21.66 | 50 | 12 | 36 | 100 | 80 | 0.5 |
| SY-300/15B | LGJ-300/15 | 23.01 | 63 | 14 | 40 | 110 | 100 | 0.6 |
| SY-300/20B | LGJ-300/20 | 23.43 | 63 | 14 | 40 | 110 | 100 | 0.6 |
| SY-300/25-40B | LGJ-300/25 | 23.76 | 63 | 14 | 40 | 110 | 100 | 0.6 |
| SY-300/25-40B | LGJ-300/40 | 23.94 | 63 | 14 | 40 | 110 | 100 | 0.6 |
| SY-400/20-35B | LGJ-400/20 | 26.91 | 63 | 16 | 45 | 120 | 100 | 0.7 |
| SY-400/20-35B | LGJ-400/25 | 26.64 | 63 | 16 | 45 | 120 | 100 | 0.7 |
| SY-400/20〜35B | LGJ-400/35 | 26.82 | 63 | 16 | 45 | 120 | 100 | 0.7 |
| SY-400/50-65B | LGJ-400/50 | 27.63 | 63 | 16 | 45 | 120 | 100 | 0.7 |
| SY-400/50-65B | LGJ-400/65 | 28.00 | 63 | 16 | 45 | 120 | 100 | 0.7 |
| SY-500/35-45B | LGJ-500/35 | 30.00 | 80 | 16 | 52 | 130 | 100 | 1.0 |
| SY-500/35-45B | LGJ-500/45 | 30.00 | 80 | 16 | 52 | 130 | 100 | 1.0 |
| SY-500/65B | LGJ-500/65 | 30.96 | 80 | 16 | 52 | 130 | 100 | 1.0 |
| SY-630/45B | LGJ-630/45 | 33.60 | 100 | 20 | 60 | 150 | 100 | 1.2 |
| SY-630/55B | LGJ-630/55 | 34.32 | 100 | 20 | 60 | 150 | 100 | 1.2 |
| SY-800/55B | LGJ-800/55 | 38.40 | 125 | 22 | 65 | 170 | 125 | 2.1 |
| SY-800/70-100B | LGJ-800/70 | 38.58 | 125 | 22 | 65 | 170 | 125 | 2.1 |
| SY-800/70-100B | LGJ-800/100 | 38.98 | 125 | 22 | 65 | 170 | 125 | 2.1 |
CCK Power Fittings
CCK Power Fittings
询价时需要提供
导体规格、设备端子图纸、接触材料、孔距、连接方法及性能要求
联系 CCK ↗同类产品
规格参考资料：www.yonguexport.com · 实际供货以确认图纸与报价为准。
