液压型耐张线夹
CCK Power Fittings
液压型耐张线夹用于线路耐张或终端位置的导线锚固，采用液压压接连接形式。
产品资料
- 产品名称
- 液压型耐张线夹
- 类别
- 耐张线夹
- 型号
- NY-50/8 / LGJ-50/8 / NY-50/30 / LGJ-50/30 / NY-70/10 / LGJ-70/10 / NY-70/40 / LGJ-70/40 / NY-95/15 / LGJ-95/15 / NY-95/20 / LGJ-95/20 / NY-95/55 / LGJ-95/55 / NY-120/7 / LGJ-120/7 / NY-120/20 / LGJ-120/20 / NY-120/25 / LGJ-120/25 / NY-120/70 / LGJ-120/70 / NY-150/8 / LGJ-150/8 / NY-150/20 / LGJ-150/20 / NY-150/25 / LGJ-150/25 / NY-150/35 / LGJ-150/35 / NY-185/25 / LGJ-185/25 / NY-185/30 / LGJ-185/30 / NY-185/45 / LGJ-185/45 / NY-240/30 / LGJ-240/30 / NY-240/40 / LGJ-240/40 / NY-240/55 / LGJ-240/55 / NY-300/15 / NY-300/20 / LGJ-300/20 / NY-300/25 / LGJ-300/25 / NY-300/40 / LGJ-300/40 / NY-300/50 / LGJ-300/50 / NY-300/70 / LGJ-300/70 / NY-400/20 / LGJ-400/20 / NY-400/25 / LGJ-400/25 / NY-400/35 / LGJ-400/35 / NY-400/50 / LGJ-400/50 / NY-400/65 / LGJ-400/65 / NY-400/95 / LGJ-400/95
- 材料
- 以具体型号与确认图纸为准
- 标准
- 按项目技术要求确认
规格与图纸

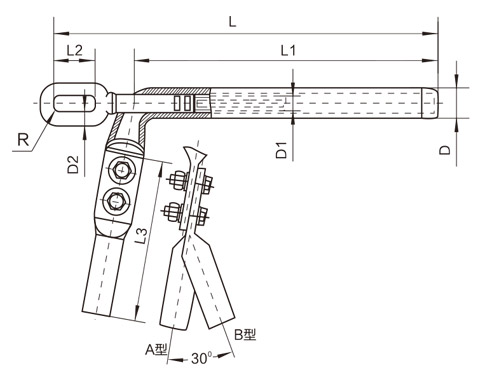

核对型号、单位及图纸上的尺寸符号。表列破坏载荷与工作载荷不同，不应直接替用。
| 型号 | Suitable Conductor (mm2) | Main Dimensions(mm) | Grip Strength (kN) | 重量（kg） | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | L1 | L2 | L3 | D | D1 | D2 | R | ||||
| NY-50/8 | LGJ-50/8 | 355 | 250 | 55 | 190 | 26 | 12 | 16 | 10 | 16.1 | |
| NY-50/30 | LGJ-50/30 | 405 | 300 | 55 | 190 | 30 | 14 | 16 | 10 | 40.5 | 1.59 |
| NY-70/10 | LGJ-70/10 | 385 | 280 | 55 | 200 | 26 | 12 | 16 | 10 | 22.3 | 1.28 |
| NY-70/40 | LGJ-70/40 | 455 | 350 | 55 | 200 | 32 | 18 | 16 | 10 | 55.4 | 1.90 |
| NY-95/15 | LGJ-95/15 | 385 | 280 | 55 | 205 | 26 | 14 | 16 | 10 | 33.3 | 1.25 |
| NY-95/20 | LGJ-95/20 | 385 | 280 | 55 | 205 | 26 | 14 | 16 | 10 | 35.4 | 1.29 |
| NY-95/55 | LGJ-95/55 | 495 | 380 | 65 | 205 | 34 | 20 | 18 | 11 | 74.2 | 2.26 |
| NY-120/7 | LGJ-120/7 | 385 | 280 | 55 | 205 | 30 | 12 | 16 | 10 | 26.2 | |
| NY-120/20 | LGJ-120/20 | 405 | 300 | 55 | 205 | 30 | 14 | 16 | 10 | 39.0 | 1.55 |
| NY-120/25 | LGJ-120/25 | 425 | 320 | 55 | 205 | 30 | 14 | 16 | 10 | 45.5 | 1.50 |
| NY-120/70 | LGJ-120/70 | 535 | 420 | 65 | 215 | 36 | 22 | 18 | 11 | 93.5 | 2.66 |
| NY-150/8 | LGJ-150/8 | 415 | 295 | 55 | 210 | 30 | 12 | 16 | 10 | 31.3 | 1.54 |
| NY-150/20 | LGJ-150/20 | 435 | 320 | 65 | 210 | 30 | 14 | 16 | 10 | 44.3 | 1.47 |
| NY-150/25 | LGJ-150/25 | 445 | 330 | 65 | 210 | 30 | 14 | 16 | 10 | 51.4 | 1.59 |
| NY-150/35 | LGJ-150/35 | 465 | 350 | 65 | 210 | 30 | 16 | 16 | 10 | 61.8 | 1.60 |
| NY-185/25 | LGJ-185/25 | 465 | 350 | 65 | 230 | 32 | 14 | 16 | 10 | 56.5 | 1.99 |
| NY-185/30 | LGJ-185/30 | 465 | 350 | 65 | 230 | 32 | 16 | 16 | 10 | 61.1 | 2.03 |
| NY-185/45 | LGJ-185/45 | 485 | 370 | 65 | 230 | 32 | 18 | 18 | 11 | 76.2 | 2.22 |
| NY-240/30 | LGJ-240/30 | 505 | 390 | 65 | 230 | 36 | 16 | 18 | 11 | 71.9 | 2.59 |
| NY-240/40 | LGJ-240/40 | 505 | 390 | 65 | 250 | 36 | 16 | 18 | 11 | 79.2 | 2.59 |
| NY-240/55 | LGJ-240/55 | 540 | 420 | 65 | 250 | 36 | 20 | 20 | 12 | 97.0 | 2.87 |
| NY-300/15 | LGJ -300/15 | 495 | 380 | 65 | 250 | 40 | 14 | 16 | 10 | 64.7 | 2.92 |
| NY-300/20 | LGJ-300/20 | 510 | 390 | 70 | 265 | 40 | 14 | 18 | 11 | 71.9 | 2.92 |
| NY-300/25 | LGJ-300/25 | 520 | 400 | 70 | 265 | 40 | 14 | 18 | 11 | 79.3 | 2.97 |
| NY-300/40 | LGJ-300/40 | 540 | 420 | 70 | 265 | 40 | 16 | 18 | 11 | 87.6 | 3.07 |
| NY-300/50 | LGJ-300/50 | 557 | 430 | 78 | 265 | 40 | 18 | 20 | 12 | 98.3 | 3.23 |
| NY-300/70 | LGJ-300/70 | 563 | 460 | 78 | 265 | 42 | 22 | 22 | 13 | 121.6 | 3.82 |
| NY-400/20 | LGJ-400/20 | 560 | 440 | 70 | 270 | 45 | 14 | 18 | 11 | 84.4 | 3.69 |
| NY-400/25 | LGJ-400/25 | 560 | 440 | 70 | 270 | 45 | 14 | 18 | 11 | 91.2 | 3.62 |
| NY-400/35 | LGJ-400/35 | 573 | 440 | 78 | 270 | 45 | 16 | 20 | 12 | 98.7 | 3.89 |
| NY-400/50 | LGJ-400/50 | 593 | 460 | 78 | 270 | 45 | 20 | 22 | 13 | 117.3 | 4.14 |
| NY-400/65 | LGJ-400/65 | 616 | 480 | 78 | 270 | 48 | 22 | 22 | 13 | 128.5 | 4.22 |
| NY-400/95 | LGJ-400/95 | 663 | 520 | 80 | 270 | 48 | 26 | 24 | 15 | 162.8 | 5.23 |
CCK Power Fittings
询价时需要提供
导线结构与直径、额定抗拉强度、握力要求、连接尺寸及安装工具
联系 CCK ↗同类产品
规格参考资料：www.yonguexport.com · 实际供货以确认图纸与报价为准。
